These gauges send a reading to a receiver in the control panel or dashboard. Standard marine output is 240-33 ohms. Other outputs are available.

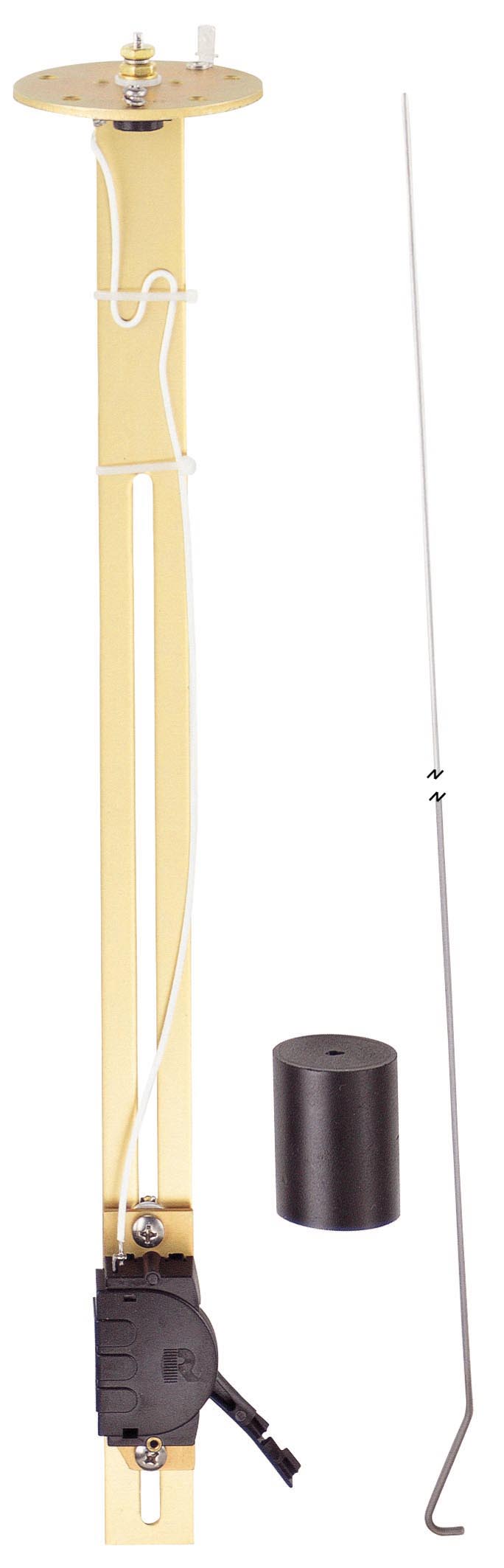

This fuel sender was designed for top mounting in unpressurized metal or plastic tank from 10" to 30" deep. It includes special features and protection from corrosion problems, making it the quality standard of the industry.Sender has a slotted support arm that allows it to be adjusted. Equipped with a 240-30 ohm resistance UL recognized for marine service. Passes BIA test for fire resistance.
This gauge is used to measure quantity of liquid in gasoline, diesel or kerosene fuel tanks used in automotive, agricultural and construction equipment, boats and marine applications and other stationary equipment where the fuel quantity is displayed with a 2" receiver/gauge located on the dash board or control panel. SAE 5 bolt mounting flange. Designed for top mounting in unpressurized metal or plastic tanks. Buna-N gasket. Adjustable to tank depths of 10"- 30". Gauges are available for larger tanks upon request and specific configurations are possible. Available with either a 240-33 Ohm or a 0-90 Ohm variable resistance

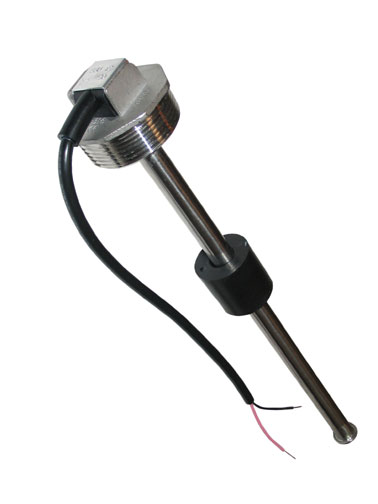

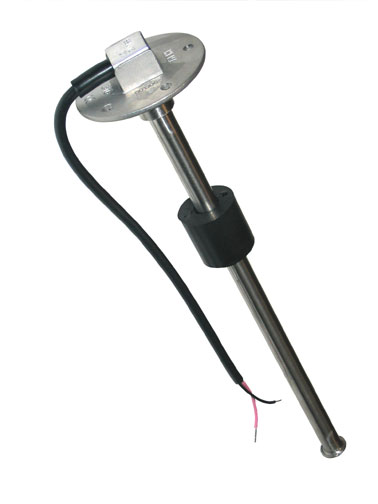

Material: | SUS 316 Stainless Steel |
Mounting Methods: | Standard SAE 5 hole pattern |
Protection Rank: | IP67 |
Output Signal: | Standard American 240-33 ohms. |
Resolution Range: | 10-40mm |
Operational Temperature: | -40°F ~ +185°F (-40°C ~ +85°C) |
Available for Fuel, Water, Holding Tank or Multi Tank
Black or White Dial face
![]() | |||||||||||||||
|
Please contact us anytime! We look forward to hearing from you.
